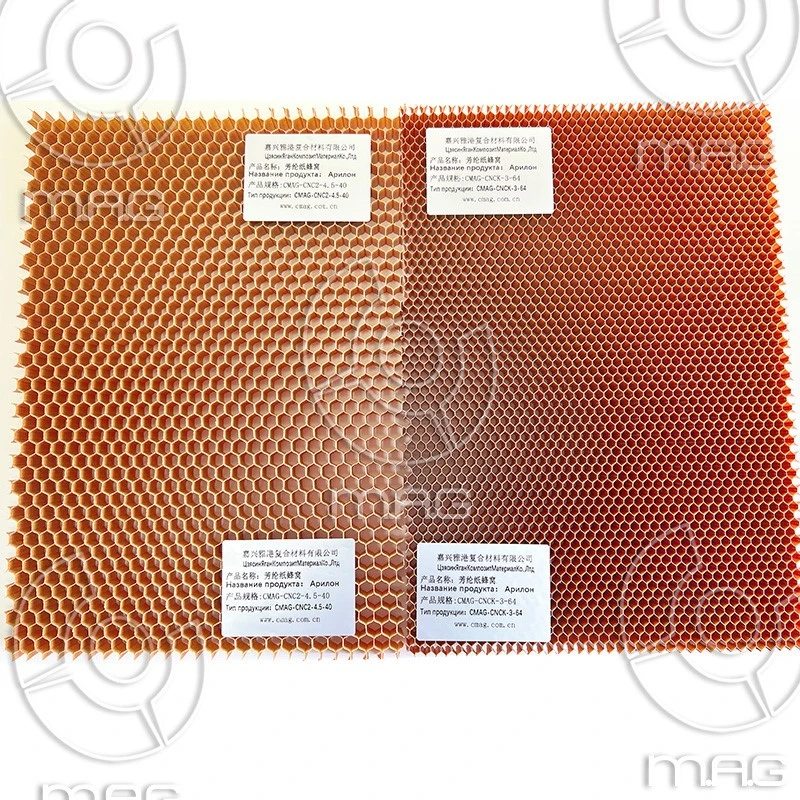

Para-Aramid Honeycomb Core is a lightweight, high-strength core material manufactured using advanced processes from high-performance para-aramid (Also known as KEVLAR) fibre paper. Its unique hexagonal honeycomb structure endows the product with exceptional specific strength and specific stiffness, delivering outstanding compressive and flexible resistance while achieving ultimate lightweight. This product inherits para-aramid's inherent superior properties: high-temperature resistance, flame resistance with self-extinguishing characteristics, fatigue resistance, and excellent electrical insulation alongside electromagnetic wave permeability. It maintains stable performance, ensuring long-term reliable operation in demanding environments.
Performance Parameters
The performance parameters of Para-aramid Honeycomb Core at room temperature are as follows.
|
Honeycomb Product Model |
Plane compression(MPa) |
L-direction shear(MPa) |
W-direction shear(MPa) |
||||||||||||
|
Strength |
Modulus |
Strength |
Modulus |
Strength |
Modulus |
||||||||||
|
Bare |
Stable |
||||||||||||||
|
Material - Core hole grid side length (mm) - Density(kg/m3) |
Typ |
Min |
Typ |
Min |
Typ |
Typ |
Min |
Typ |
Min |
Typ |
Min |
Typ |
Min |
||
|
Hexagonal cell honeycomb (normal cell) |
CMAG-CNCK-2-40 |
1.30 |
0.90 |
1.40 |
1.20 |
140 |
1.30 |
1.00 |
70 |
55 |
0.70 |
0.65 |
35 |
25 |
|
|
CMAG-CNCK-2-48 |
2.21 |
1.80 |
2.50 |
2.00 |
180 |
1.60 |
1.30 |
80 |
61 |
1.00 |
0.75 |
45 |
34 |
||
|
CMAG-CNCK-2-64 |
2.80 |
2.00 |
4.30 |
3.90 |
210 |
2.00 |
1.80 |
90 |
75 |
1.50 |
1.30 |
50 |
38 |
||
|
CMAG-CNCK-2-80 |
5.00 |
4.00 |
5.50 |
5.00 |
300 |
2.70 |
2.00 |
100 |
87 |
1.80 |
1.60 |
60 |
55 |
||
|
CMAG-CNCK-3-32 |
1.15 |
0.80 |
2.00 |
1.35 |
110 |
0.95 |
0.70 |
50 |
30 |
0.57 |
0.54 |
30 |
20 |
||
|
CMAG-CNCK-3-40 |
1.60 |
1.20 |
2.10 |
1.70 |
120 |
1.30 |
0.95 |
60 |
35 |
0.75 |
0.71 |
30 |
20 |
||
|
CMAG-CNCK-3-48 |
2.23 |
1.80 |
2.50 |
2.00 |
180 |
1.50 |
1.20 |
70 |
61 |
0.97 |
0.70 |
45 |
36 |
||
|
CMAG-CNCK-3-64 |
3.70 |
3.50 |
4.00 |
3.80 |
280 |
2.55 |
2.00 |
90 |
78 |
1.45 |
1.25 |
55 |
38 |
||
|
CMAG-CNCK-3-72 |
4.30 |
3.60 |
5.20 |
4.55 |
300 |
2.60 |
2.10 |
100 |
85 |
1.62 |
1.40 |
65 |
55 |
||
Note: In CMAG honeycomb models, CNCK refers to the para-aramid paper honeycomb grade used internally by CMAG. The length unit of the para-aramid honeycomb core is in millimeters, without imperial units. Other cell sizes, densities, and dimensions can be provided according to special requirements.
CMAG-CNCK-2-48
- 48: Density 48kg/ m³
- 2: Core hole grid side length: 2mm
- CNCK: Para-aramid paper honeycomb
- CMAG: Jiaxing CMAG Composite Material Co., Ltd.
Product Features
- Compared to conventional aramid honeycomb, it offers significantly enhanced strength and modulus, coupled with superior thermal-humidity stability and resistance to extreme temperatures.
- Achieves substantial weight reduction, making it an ideal choice for advanced aircraft and high-end equipment seeking a balance between weight and performance.
- Exceptional resistance to salt and alkali, alongside high and low temperature performance, endows the product with outstanding environmental adaptability and extended lifecircle.
Application Cases
Para-Aramid Honeycomb Core has been extensively deployed in critical load-bearing structures within the aerospace domains:
- Unmanned Aerial Systems: Utilized in large UAV wing, tailplane skins and fuselage frameworks.
- Helicopter Components: Utilized in main rotor blade cores and internal tail boom reinforcement structures.
- Spacecraft Equipment: Applied in satellite solar array substrate plates, rocket fairings and missile body sections.
